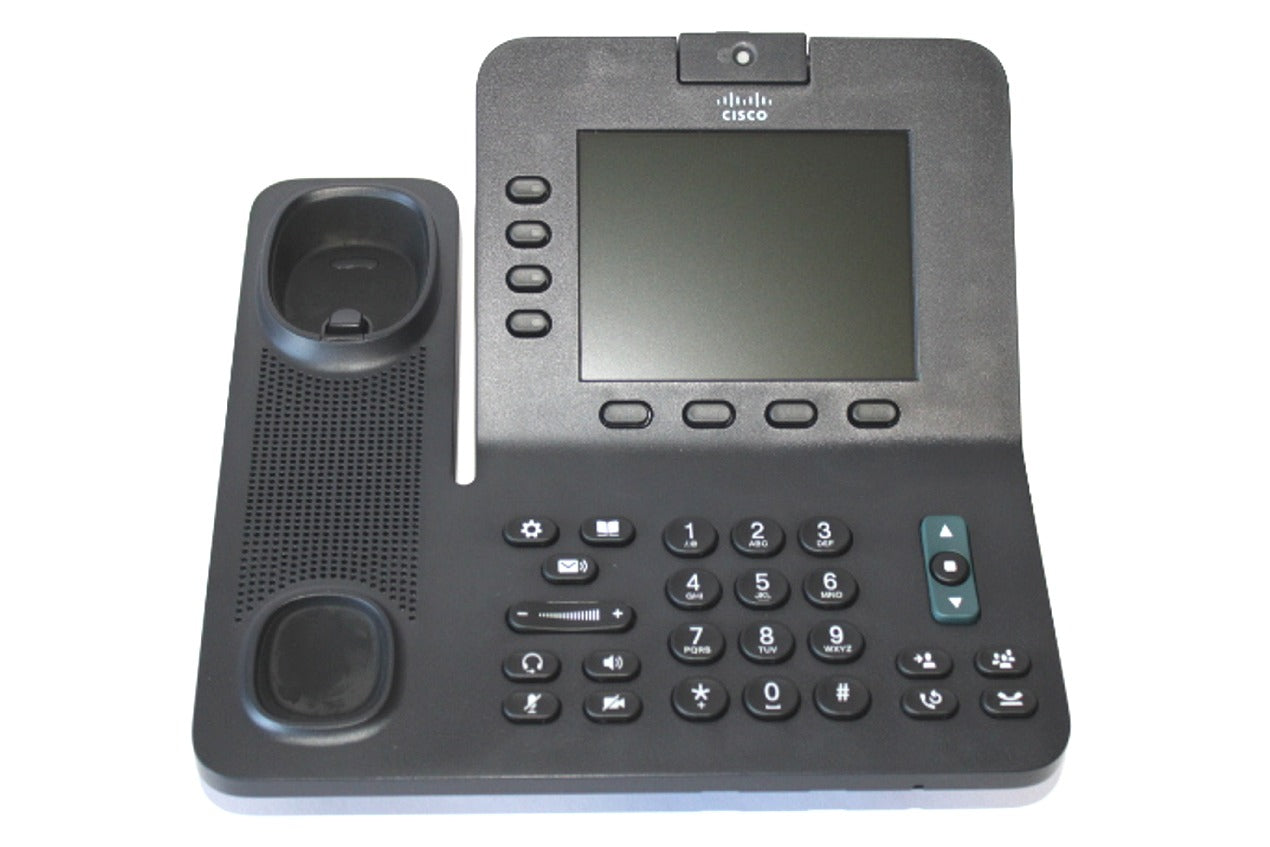

Cisco 8945 Unified IP Phone model CP-8945-K09

The Cisco 8945 Unified IP Phone model CP-8945-K09 is equipped with a top-of-the-line video camera. It is a cutting-edge IP endpoint that offers affordability. The Cisco 8945 delivers a high-quality and secure rich-media experience in any workplace.

Features

• Bluetooth Headset Support
• Lighted Menu Key
• Deep-Sleep Option
• Four Soft Keys
• Lighted Message Waiting Indicator
• Volume Control
• Adjustable Ringtones
• Four Line Support


Specifications

• Multi-language Support
• Codec: G.711, G.711u, G.729ab, G.722, and iLBC
• Cisco Discovery Protocol and IEEE 802.1 p/q tagging and switching
• Display: VGA, 640x480 Pixel, 24 Bit Color, Backlit
• Ethernet: 2 Port 10/100/1000
• Size: 9.25 x 4.49 x 10.24 in. (235 x 114 x 260 mm)
• Weight: 2.80 lb (1.27 kg) Slimline: 2.72 lb (1.235 kg)
• Material: Polycarbonate acrylonitrile butadiene styerene (ABS) plastic
• Downloadable Firmware
• Software Upgrades: TFTP Server

Video Specs

• Video Standards: H.264/AVC
• Frame Rate: up to 30 FPS

Picture Formats

• VGA 600x480 at 30 FPS
• W360p 600x360 at 30 FPS (SIP Only)
• CIF 352x288 at 30 FPS
• SIF 352x240 at 30 FPS
• QCIF 176x144 at 30 FPS

Compatibility

• Power: Local AC Power Supply, or 802.3af PoE
• Supported in Cisco Unified Communications Manager and Unified Communications Manager Business Edition Versions 7.1.5 and later using Skinny Client Control Protocol (SCCP). Session Initiation Protocol (SIP)

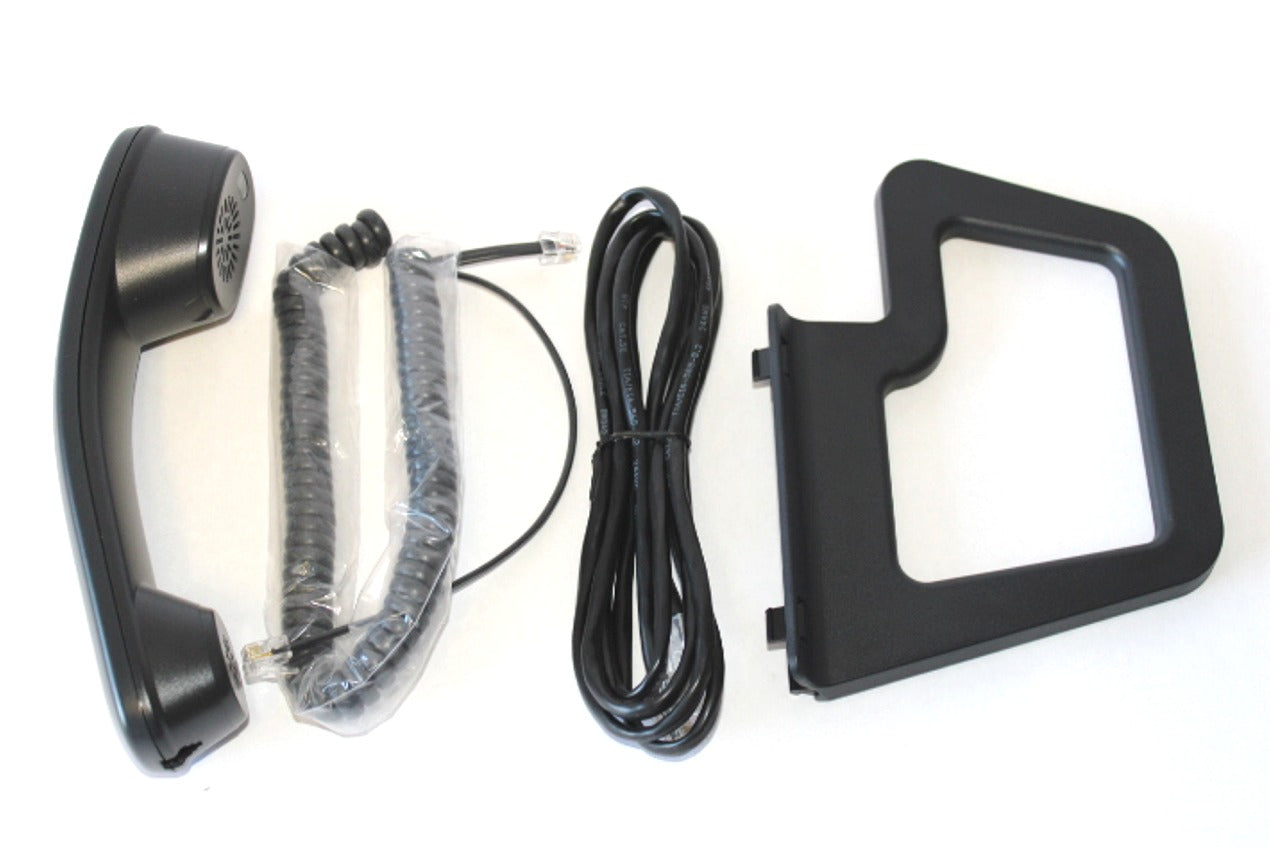

Included

• Cisco 8945 Unified IP Phone
• Handset
• Handset Cord
• Ethernet Cable
• Stand
